Specifications

ITEM#: EBF3



EverBase 3 is a modular, interlocking,  general purpose flooring system. It can be used for a variety of applications at all types of venues and facilities.

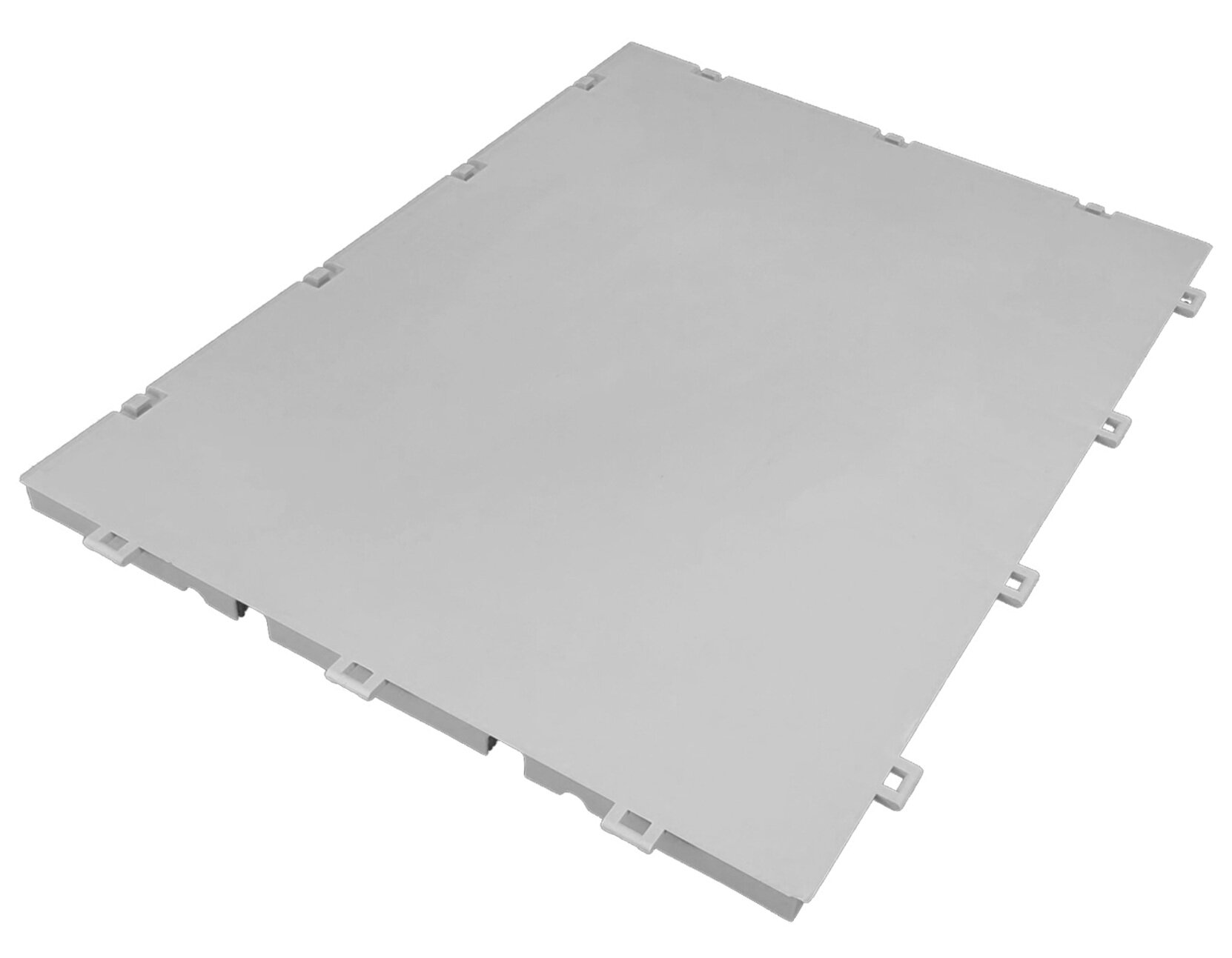

The EverBase 3 tile is an 18" x 24" flooring tile that interconnects, using a reinforced connector system, with adjacent tiles to create a seamless floor surface and a solid support base for all types of activities. The EBF3 connection systems is designed for heavier duty use and is designed to deploy significantly faster than other EverBase options.  From on-field concerts to tent flooring at events and from shelter flooring to ice arena covers, the EBF3 is our most capable, heavier duty flooring option.


Weights and Dimensions

Length: 24"  (60.96 cm) Width: 18"  (45.72 cm) - 3 sq/ft per tile (0.28 sqm per tile)

Thickness: 1.1" (2.79 cm)

Weight: 3.71 lb per tile (1.68 kg)

Material: Hi-Impact Polypropylene Co-Polymer


Colors

Light Grey standard on Solid Top (ST Version).  Translucent and Light Grey standard for grass protection (DT Version).

Custom colors available with minimum order sizes


Weight Loading Capacity

Weight Loading Capacity:  8500 lbs. sq/ft

*On a solid subsurface, non-moving (static) weight, with equal distribution of load across the tile surface

EverBlock 2 underside

Support Structure:  Intersecting Bi-directional support ribs provide structure, torsional strength, and additional weight distribution and weight loading capabilities.


Versions

Solid Top (ST) -

Features a flat top surface



Drainage Top (DT)-

Contains a series of drainage, light, and aeration holes on top




Fire Rating

Underwriters Laboratory Test: UL94HB

Hot Wire Ignition Rating: 3

*This test signifies that EverBlock does not flare up when exposed to an open flame and has a slow burn rate of 2” per minute for a 2” wide, 0.5 millimeter thickness test sample. EverBlock meets all applicable standards for temporary floor covers.

ASTM 2859 (Flammability of Finished TEXTILE Floor Covering Materials):  PASS

Accredited testing documents available upon request


Available Accessories

Expansion Joint: Specialized expansion joint module that interconnects between EBF3 sections and allows for thermal expansion and contraction. Modules are 6” wide and have the ability to absorb up to 3” of thermal expansion or contraction due to sunlight and temperature shifts from nighttime to daytime.

EverBlock wheeled cart

Transport Cart: Heavy duty wheeled cart that allows for easy transport and storage of the flooring.


Uses of EBF3

EverBase 3 may be used for numerous applications.

  • Natural Turf Protection – DT

  • Synthetic Turf Protection - ST

  • Ice Arena Floors – ST/AF

  • Tent Flooring – ST/DT

  • Military Shelter Flooring – ST/DT

  • General Event Flooring – ST/DT

  • Exhibition Flooring - ST

  • Base for EverBlock Building Blocks – BT

  • Raised Flooring and Risers (over EverBlock modular blocks) - ST


Warranty

3 Year Warranty EverBlock

Standard 3 Year Warranty Against Manufacturer's Defects.

See complete EverBlock Warranty HERE


Shipping Specifications

Standard Pallet Size:  40" x 48" x 84" --> 840 sq/ft  (smaller quantities may be ordered)

  • Modules on Pallet: 280

  • Layers on Pallet: 70

  • Module Weight: 1066.80 lbs.

  • Module Weight with Pallet: 1106.80 lbs.

53ft Truck: 26 Pallets --> 21,840 sq/ft

20ft Ocean Container: 10 Pallets --> 8,400 sq/ft

40ft Ocean Container: 20 Pallets --> 16,800 sq/ft

40ft High Cube Ocean Container: 20 Extra Tall Pallets --> 16,800 sq/ft

463L Military Standard Pallet: 2,400 sq/ft maximum loading


EverBlock 3 Features

EverBase 3 Incorporates unique functional features that distinguish it from competitors

  • Unique modular design allows sections to be connected to create nearly any sized floor

  • Proprietary connection system allows for quick installation and removal WITHOUT any tools.

  • Heavy duty connectors are protected when connected (nest into each other) and can withstand tremendous weights.

  • Tiles features curved, overlapping flanges, for additional turf protection and weight loading capabilities

  • Lightweight construction for easy handling and transport

  • Durable cross ribs add structural support, increase weight loading capacity and provide torsional stability

  • Integrated cable channels allow for networking and power cables to be run underneath the flooring

  • May be installed on top of EverBlock modular building blocks, allowing floors to be raised

  • UV protected

  • Fully waterproof and chemical resistant and may be used indoors and outside

  • 100% recyclable

  • Drainage (DT) version allows water and light through to facilitate photosynthesis and create a moisture canopy that protects grass for several day.
